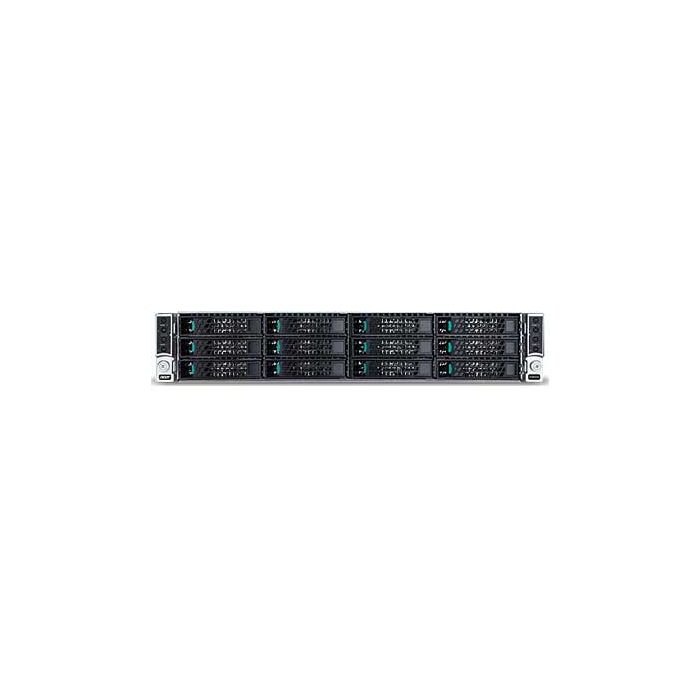

Acer Altos AW2000h F2

CPU Option
Up to 2 x Intel® Xeon® processors E5-2600 v2 series
Chipset Intel® C602 chipset
Graphics BMC embedded Emulex controller:
• 128 MB shared video memory, 16 MB dedicated
Memory1, 2 Up to 16 x 800/1066/1333/1600/1866 MHz DDR3/DDR3L registered/unbuffered ECC memory3
Registered DIMM size: 2/4/8/16 GB
• Up to 256 GB registered DDR3 DIMMs when populated, 16 slots
Unbuffered DIMM size: 2/4/8 GB
• Up to 128 GB unbuffered DDR3 DIMMs when populated, 16 slots
Expansion slots
1 x PCIe® 3.0 x16 slot, supporting low-profile/half-height PCIe® cards
1 x I/O module connector for management and interconnect modules
Onboard ports Front:
• LED indicators: power, HDD activity, LAN
Rear:
• 2 x Gigabit LAN ports (RJ-45)
• Management through port one
• Optional Dedicated Management port (RJ-45)
• System ID LED
• Optional onboard QDR / FDR InfiniBand™
port4
• 2 x USB ports
• Video port
• Optional 10 Gb Ethernet dual-port module
SAS RAID Intel® RSTe RAID 0/1/10/5 for SATA mode
Intel® ESRT2 RAID 0/1/10 for SAS/SATA mode
LAN controller Dual-port Intel® I350 Ethernet controller

Security and service features
Administrator/user password
Setup password
Power-on password
Device boot control

Sub-system availability
Power supply 2 x 1600 W 80 PLUS® platinum-level efficiency, easy-swap power supply units (hot-swappable)/ (hot-swappable, 1+1 redundant)
System cooling High-power system fans
Storage Up to 3 x 3.5" or 2.5” hot-swappable HDDs per node, or
Up to 4 x 2.5” SAS/SATA hard drives per node
Chassis Form factor 2U rack optimized (4 nodes)
Dimensions 438 (W) x 771 (D) x 87.9 mm (H) (17.24 x 30.35 x 3.46 inches)
Weight 38 kg (83.8 lbs.) maximum (all component slots and sockets fully populated)

OS support
Microsoft® Windows Server® 2012 R2
Microsoft® Windows Server® 2008 R2
Microsoft® Windows Server® 2008
SUSE® Linux® Enterprise Server 11
Red Hat® Enterprise Linux® 5 / 6
VMware ESXi™ 5.0

Server management utilities and applications
Acer Smart Setup Resource CD
Acer Smart Server Manager
Optional iKVM module via Intel® Remote Management Module
3-year standard warranty or choose extended warranties and services
