ASUS RS700-E9-RS4

Berikan ulasan
Rp100.000.000,00
Stock Terbatas
SKU
RS700-E9-RS4-050123ASU
Bandingkan

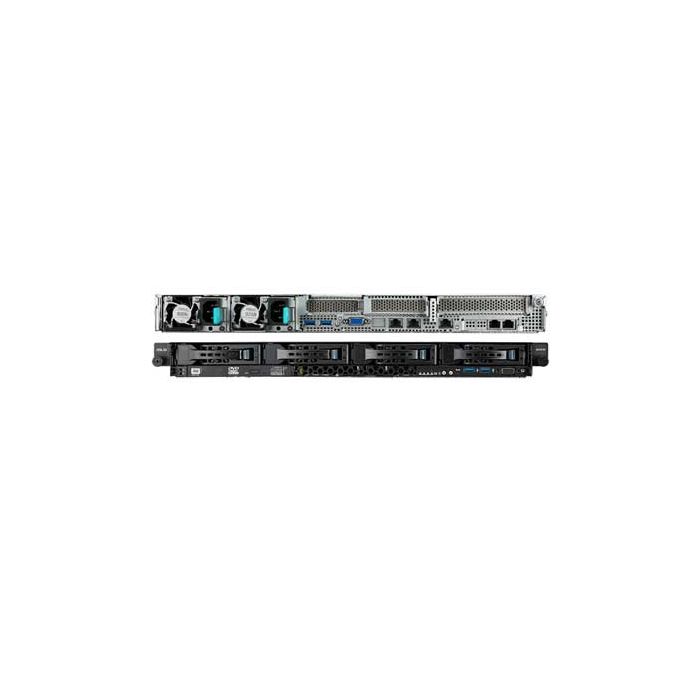

main product photo

  • Processor / System Bus

    2 x Socket P (LGA 3647)
    1st and 2nd Gen Xeon® Scalable Processor Family
    *Refer to support page for more information
    UPI (10.4 GT/s)


  • Generation

    E9

  • Core Logic

    Intel® C621 Chipset

  • Memory

    Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU)
    Capacity :
    Up to 3TB (128Gx24) of memory for RDIMM/LRDIMM
    Up to 7.68TB (512G*12 DCPMM + 128G*12 RDIMM/LRDIMM)
    Memory Type :
    DDR4 2933/2666 RDIMM
    DDR4 2933/2666 LRDIMM
    DDR4 2933/2666 LR-DIMM 3DS
    Intel® Optane™ DC Persistent Memory
    Memory Size :
    32GB, 16GB, 8GB, 4GB RDIMM
    64GB, 32GB LRDIMM
    128GB, 64GB LR-DIMM 3DS
    512GB, 256GB, 128GBIntel® Optane™ DC Persistent Memory
    * Refer to support page for more information
    * Actual memory frequency differs from Intel CPU types and memory module.
    Please check Intel official site for more detail about the memory types supported by each CPU.
    * Intel® Optane™ DC Persistent Memory for 2nd Generation Intel

  • Expansion Slots

    1 x PCI-E x16 (Gen3 x16 link), FH, HL (CPU1)
    1 x PCI-E x16 (Gen3 x8 link), LP, HL (CPU2)
    1 x PCI-E x8 (Gen3 x8 link), LP, HL (CPU2)
    1 x OCP 2.0 Mezzanine (Gen3 x16 link) (CPU1)


  • Storage

    SATA Controller :
    Intel® C621
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    Intel®VROC (For Linux/Windows)
    (Support Software RAID 0/1/5/10 )
    Optional kits Controller :
    ASUS PIKE II 3008 8-port SAS HBA card
    ASUS PIKE II 3108 8-port SAS HW RAID card
    12G SAS Support

  • Drive Bays

    4 x 3.5" Hot-swap Storage Bays (4 x SATA/SAS)
    2 x M.2 (22110, 2280, 2260, 2242)
    (Support SATA/PCIe M.2,SATA RAID)
    *SAS support via PIKE


  • Networking

    1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN


  • Graphic

    Aspeed AST2500 with 64MB VRAM

  • Front I/O Ports

    2 x USB 3.0 ports
    1 x VGA port

  • Rear I/O Ports

    2 x USB 3.0 ports
    1 x VGA port
    2 x RJ-45 GbE LAN ports
    1 x RJ-45 Mgmt LAN port

  • Switch/LED

    Rear Switch/LED:
    1 x Power switch
    1 x Q-Code/Port 80 LED
    1 x Message LED
    1 x HDD LED
    1 x Location LED

    Front Switch/LED:
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Message LED
    1xHDD LED
    LAN 1-4 LED
    * LAN3-4 for Mezzazine card use


  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    On-Board ASMB9-iKVM for KVM-over-IP

  • Dimensions

    686mm x 444mm x 44mm(1U)
    27" x 17.48" x 1.73"

  • Form Factor

    1U

  • Weight

    Net Weight : 16.5KG
    Gross Weight : 18.05KG


  • Power Supply

    1+1 Redundant 800W/550W 80 PLUS Platinum Power Supply
    Rating:
    100-127/200-240Vac,9.4A/4.72A, 47-63Hz Class I or 240Vdc, 3.5A (800W)
    100-127/200-240Vac,7A/3.4A, 47-63Hz Class I or 240Vdc, 3.5A (550W, CPU TDP to up 140W)
    (240Vdc Only for China)

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 60℃
    Non operation humidity: 20% ~ 90% ( Non condensing)

  • Optional Items

    RAID
    90SC05E0-M0UAY0 PIKE II 3008-8i
    90SC06G0-M0UAY0 PIKE II 3108-8i-16PD
    90SC07N0-M0UAY0 PIKE II 3108-8I/16PD/2G
    90SK0000-M77AN0 MINISAS HD TO MINISAS HD//L=85CM/SINGLE PACK(MOQ:1
Info Lainnya
Merk Asus
Style Bisnis
Platform Rackmount Server
Prosesor Intel Xeon
RAM 64GB
Storage 4TB
Display -
Display Type -
OS DOS
VGA Integrated
I/O LAN RJ 45
Garansi 3 Tahun
