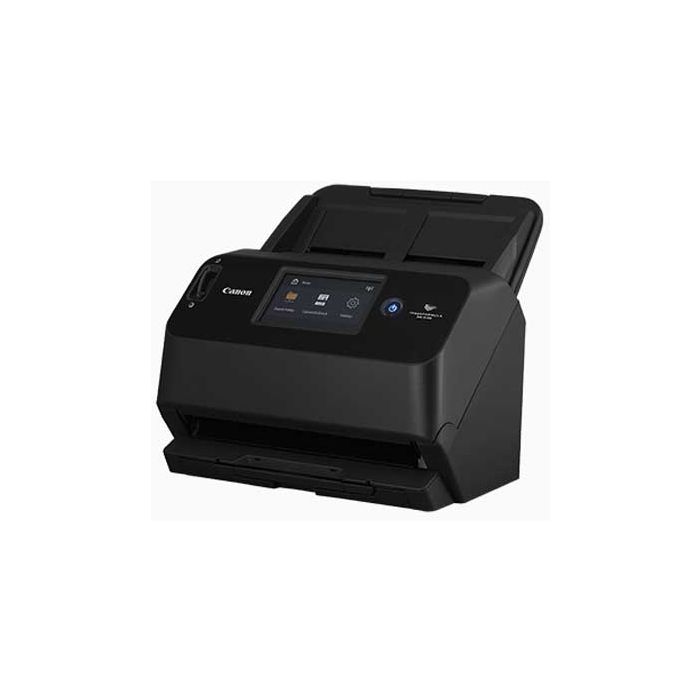

Canon DR-S150

Type Desktop Sheet-Fed Scanner
Scanning Speed*1
Greyscale
200 dpi: 45 ppm (Simplex) / 90 ipm (Duplex)
300 dpi: 45 ppm (Simplex) / 90 ipm (Duplex)
Colour
200 dpi: 45 ppm (Simplex) / 90 ipm (Duplex)
300 dpi: 30 ppm (Simplex) / 60 ipm (Duplex)
Scanning Element Contact Image Sensor (CIS)
Light Source LED
Scanning Side Simplex / Duplex
Scanning Modes Black and White, Error Diffusion, Greyscale, Advanced Text Enhancement, Advanced Text Enhancement II, Active Threshold, Colour
Scanner Features Folio Scanning, Double Feed Detection Ignore, 2D / Barcode
Output Resolution*2 100, 150, 200, 240, 300, 400, 600 dpi
Suggested Daily Volume (SDV) 4,000 scans a day
Media Handling
Document Size
Plain Paper
Width: 50.8 to 216 mm
Length: 54 to 356 mm (Up to 3,000 mm long with Long Document mode)
Business Card 50 x 85 mm or larger
Card (ISO Standard) 54 x 86 mm
Document Thickness and Weight
Plain Paper
Page Separation: 27 to 209 g/m² (0.04 to 0.25 mm)
Non-Separation: 27 to 255 g/m² (0.04 to 0.3 mm)
Business Card 380 g/m² (0.45 mm) or smaller
Card 1.4 mm or smaller
Auto Document Feeder (ADF) Capacity*3 60 sheets
Connectivity & Software
Interface USB 3.2 / 2.0, IEEE802.11b/g/n, 10Base-T/100Base-TX/1000Base-T
Software ISIS / TWAIN / WIA Drivers, CaptureOnTouch, CaptureOnTouch Job Tool
General
Power Requirements AC 100 - 240 V (50 / 60 Hz)
Power Consumption
Scanning (Max.) 22.5 W
Sleep Mode
100 - 120 V: 3.1 W
220 - 240 V: 3.4 W
With Power Switched OFF (Max.) 0.1 W
Operating Environment
Temperature 10 to 32.5°C
Humidity 20 to 80% RH
Dimensions (W x D x H) When Trays Are Closed 291 x 247 x 242 mm
When Trays Are Opened 291 x 600 x 378 mm
Weight (Approx.) 3.3 kg (Without AC adapter)
Consumables & Accessories
Options / Consumables Exchange Roller Kit, Carrier Sheet (Passport), Carrier Sheet (A4)
Accessories Flatbed Scanner Unit 102, Flatbed Scanner Unit 201
