Cisco UCS 64108 Fabric Interconnect

Cisco UCS 64108 108-Port Fabric Interconnect

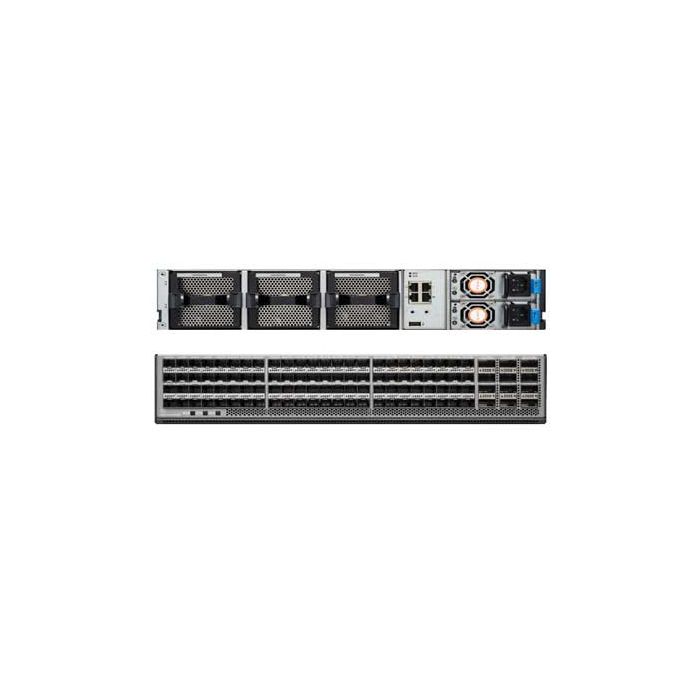

The Cisco UCS 64108 Fabric Interconnect (FI) is a 2-RU top-of-rack switch that mounts in a standard 19-inch
rack such as the Cisco R Series rack. The 64108 is a 10/25/40/100 Gigabit Ethernet, FCoE and Fiber Channel
switch offering up to 7.42 Tbps throughput and up to 108 ports. The switch has 16 unified ports (port
numbers 1-16) that can support 10/25-Gbps SFP28 Ethernet ports or 8/16/32-Gbps Fibre Channel ports, 72
10/25-Gbps Ethernet SFP28 ports (port numbers 17-88), 8 1/10/25-Gbps Ethernet SFP28 ports (port
numbers 89-96), and 12 40/100-Gbps Ethernet QSFP28 uplink ports (port numbers 97-108). All Ethernet
ports are capable of supporting FCoE.

The Cisco UCS 64108 Fabric Interconnect also has one network management port, one console port for
setting the initial configuration, and one USB port for saving or loading configurations. The FI also includes
L1/L2 ports for connecting two fabric interconnects for high availability.

Ports 1-16
Unified ports that support
■ 10/25 Gbps Ethernet, or
■ FCoE, or
■ 8/16/32 Gbps FC

Ports 17-88
10/25 Gbps Ethernet or FCoE only

Ports 89-96
1/10/25 Gbps Ethernet or FCoE

Uplink Ports 97-108
40/100 Gbps Ethernet or FCoE
Each of these ports can be 4 x 10/25
Gbps Ethernet or FCoE uplink ports when
using a breakout cable.
