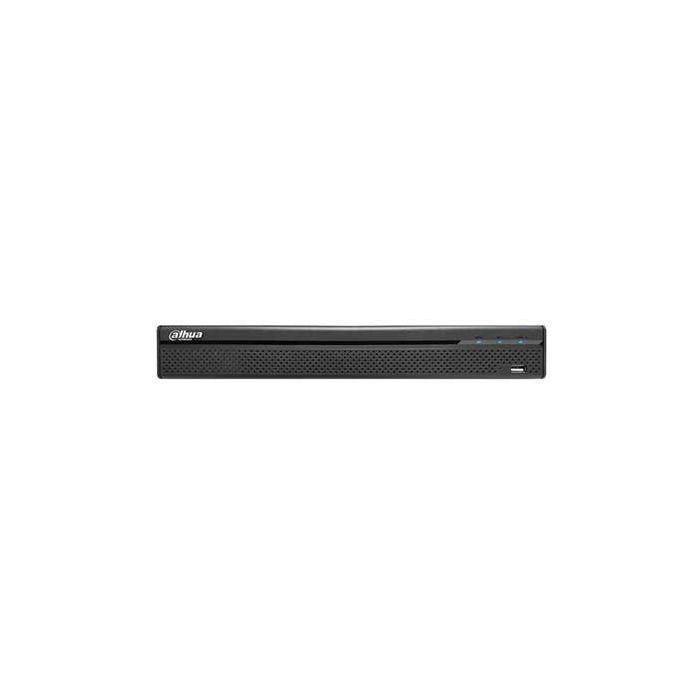

Penta-brid 1080P 2 HDD WizSense DVR
- Analog Channel: 32 Camera HDCVI (5MP 16:9), TVI (5MP 4:3), AHD (5MP 4:3), CVBS (PAL)
- IP Channel: up to 6MP (Max 128Mbps) - Dapat mengorbankan channel di Analog maksimal up to 32 Camera IP
- Resolusi Rekaman: 4M-N / 1/2 dari 4MP (1520 x 1344), 1080P (1920 x 1080), 1080-N (1080 x 960), 720P (1280 x 720), 960H, D1, CIF
- Frame Rate: Max 15fps@4M-N
- Video Compression: H.264+, H.264
- BNC Audio: Support HDCVI Camera Mic (Hanya support kamera Dahua)
- Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
- SMD Plus: N/A
- Perimeter Protection: N/A
- Face Recognition: N/A
- Audio Interface: 1 x RCA In, 1 x RCA Out (Support Two-way Talk)
- Display Interface: 1 x HDMI (1920 x 1080), 1 x VGA (1920 x 1080), 1 x BNC TV
- Network Interface: 1 x RJ-45 Port (1000 Mbps), ONVIF Support
- Alarm / Relay Interface: N/A
- Storage: 2 x SATA Port (up to 16TB HDD)
- Auxiliary Interface: 1 x USB 2.0 Port (Front), 1 x USB 3.0 Port (Rear), 1 x RS485 Port (PTZ Control)
- Application: Smart PSS (Desktop), DMSS (Android & iOS)
- Power: 12V DC, 4A
- Dimensi: 375 mm × 289 mm × 53 mm
- Berat: 1560g
*Tidak termasuk HDD
| Merk | Dahua |
|---|
