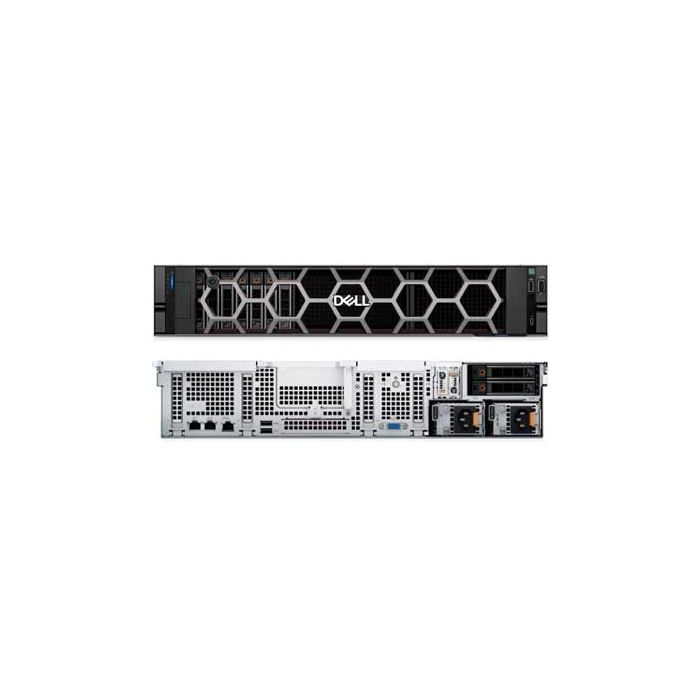

Dell PowerEdge R750xs CSP

Processor Up to two 3rd Gen Intel® Xeon® processors

Operating System
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® vSAN/ESXi®
Canonical® Ubuntu® Server LTS

Chipset Intel® C741 Chipset
Memory DIMM Speed Up to 4800 MT/s
Memory Type RDIMM
Memory Module Slots 16 DDR5 DIMM slots
Maximum RAM 2 TB
Accelerators 2 x 75 W SW, LP
Front Bay
0 drive bay
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB

Rear Bay Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

Storage Controllers
Internal Controllers
PERC H755, PERC H755N, PERC H355, HBA355i

External Controllers HBA355e

Software RAID S160

Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs
USB

Mobility OpenManage Mobile

Power Supplies
1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1100 W LVDC -48 — (-60) VDC, hot swap redundant
800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant

Ports
Network Options
2 x 1GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card to be installed in the system.

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA

Internal Ports
1 x USB 3.0 (optional)

Slots
PCIe
1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4) or up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4)
2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4)

Video 1 x VGA

Bezel Optional LCD bezel or security bezel

Form Factor 2U rack server

Dimensions & Weight
Height 86.8 mm (3.41 inches)
Width 482 mm (18.97 inches)

Depth
707.78 mm (27.85 inches) – without bezel
721.62 mm (28.4 inches) – with bezel

Weight Max 28.6 kg (63.0 lbs.)

Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
ReadyRails static rails for 4-post and 2-post racks
