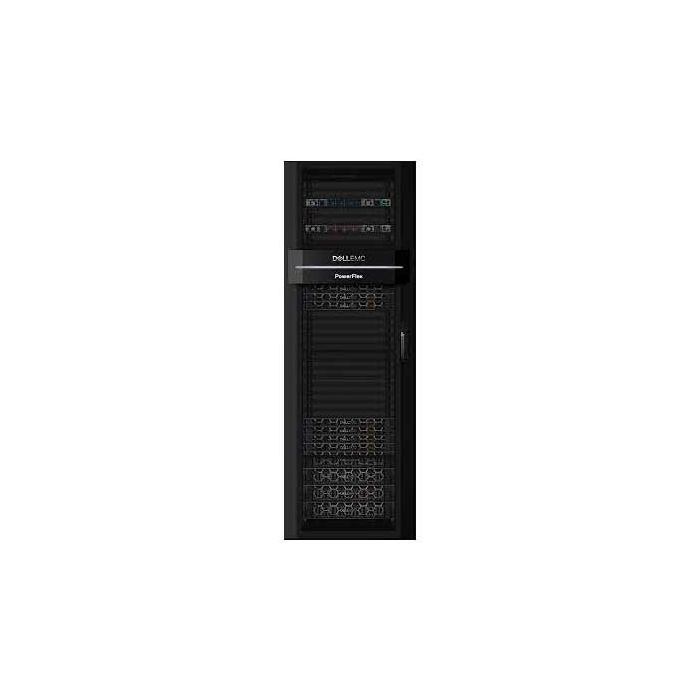

Dell PowerFlex

System Raw Capacity 16 PB
Device size Minimum: 240 GB, Maximum: 8 TB (Maximum 15.36 TB for SSDs on medium granularity storage pools)
Volume Size Minimum: 8 GB, Maximum: 1 PB
Maximum filesystem partitions per volume 15
Maximum total number of volumes and snapshots in system 131,072 a
Maximum total number of volumes and snapshots in protection domain 32,768
Maximum total number of volumes and snapshots per storage pool 32,768
Maximum number of snapshots per source/root volume 126
Maximum raw capacity per SDS 160 TB (medium granularity) 128 TB (fine granularity)
Maximum SDCs per system 2048
Maximum SDSs per system 512 a
Maximum SDSs per protection domain 128 a
Maximum devices (drives) per SDS server 64 (includes any NVDIMM devices)
Maximum devices per protection domain 8192
Maximum devices per storage pool 300 Total size of all volumes per storage pool 4PB
Maximum volumes that can be mapped to a single SDC 1024 System over provisioning factor 5x net/usable capacity per MG layout Fine-granularity maximum compression 10x raw capacity
Maximum storage pools per system 1024 Maximum storage pools per protection domain 64 Maximum fault sets per protection domain 64
Maximum Snapshot Policies per system 1000
Maximum number of snapshots a snapshot policy can be defined to retain (not including locked snapshots) 60
