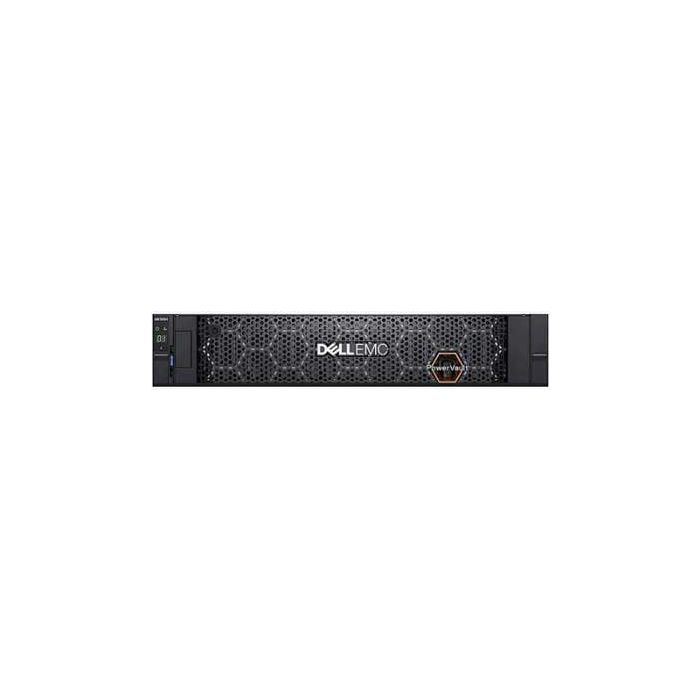

Dell PowerVault ME5024

Chassis format All-in-one: dual controllers, internal drive bays, networking and with expansion options
Rack size 2U
Controllers 2 hot-swappable per chassis (dual-active) / Single/dual controller support for 2U models / Dual controller support only for 5U model
Processor Intel® Xeon Processor
Internal storage 24 x 2.5” drive bays
System memory (per controller) 8GB for controller and 16GB for cache (24GB total)
Expansion enclosures 84 x 3.5” drive bays (12Gb SAS)
NAS Support Supported with NX Series Windows NAS appliance
Storage media
SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
• NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 16TB, 16TB FIPS, 20TB, 22TB
• SAS 10K 2.5” – 1.2TB, 2.4TB, 2.4TB FIPS
• SSD – 1.6TB MU, 1.92TB, 3.84TB, 3.84TB FIPS, 7.68TB RI
Disk interface expansion ports
2 x 12Gb SAS (wide-Port) per array (1 port per controller)
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Array configurations All-flash, hybrid flash, HDD only arrays
RAID support RAID 1, 5, 6, 10, or ADAPT RAID; any combination of RAID levels can exist in single array
