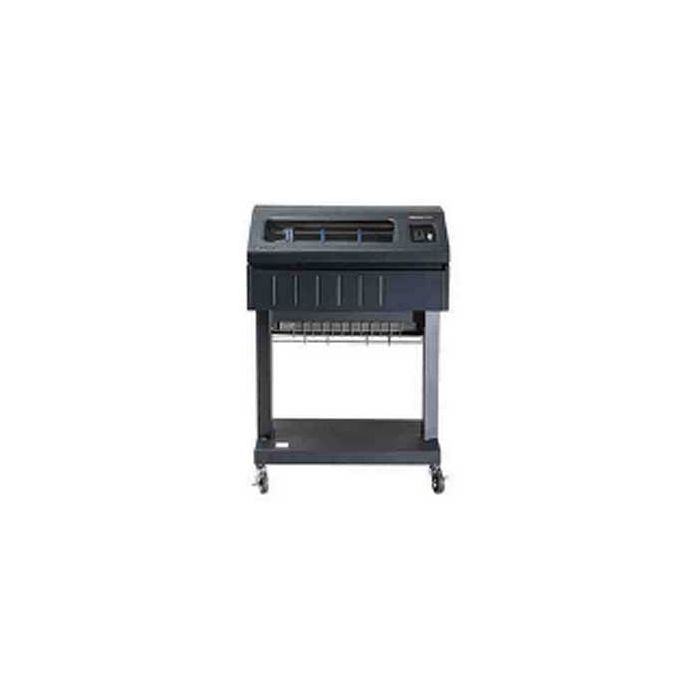

Printronix P8010 Pedestal

Connectivity/Interfaces:

• Standard: USB 2.0, Serial RS-232, Ethernet 10/100BaseT
• Optional: Parallel – IEEE 1284 Centronics

Character Pitch (characters per inch)

• 10, 12, 13.3, 15, 16.7, 17.1, 18, 20

Line Spacing (lines per inch)

• 6, 8, 9, 10.3, n/72, n/216

Graphics Resolution

• 120 dpi Horizontal, 144 dpi Vertical (max)

Dot Size

• 16.7 mil (.42mm)

Emulations

• Standard: LP+ (Printronix P-Series, P-Series XQ, Serial Matrix, IBM ProPrinter III XL, Epson FX-1050), ANSI, PCL 2, TN5250/TN3270, Graphics Emulation PGL & VGL
• TG: Tally ANSI (Tally Industrial Graphics), Genicom ANSI, Printronix P600 (QMS Code V) / P5000 / P6000 (PGL – TG Version), Epson FX-1180, IBM ProPrinter, MTPL (Tally Dot Matrix), HP2564C (PCL3), DEC LG01 (text only)
• Optional: IPDS, DEC LG (text & graphics)

Character Sets

• 99 plus character sets including ECMA Latin 1, DEC Multinational, IBM Code Page 437 and 850, OCR A, OCR B, UTF8 encoded Unicode

Character Styles

• Bold, italic, double wide, double high, overstrike, underline, subscript and superscript

Fonts

• NLQ Serif, NLQ Sans Serif, Data Processing, High Speed, OCR A, OCR B

Barcodes

• 30 resident symbologies, including Code 39, EAN 8/13, UPC A/E, Intelligent Mail, Postnet, Royal Mail, Interleaved 2 of 5, PDF 417, Data Matrix

Printer Software

• Printronix PrintNet Enterprise remote management software, SAP device support

Printer Drivers

• Windows XP, 7, 8, 10; Windows Server 2003, 2008/R2, 2012, 2016, 2019, 2022; Linux/UNIX; SAP

Power Voltage

• AC input range 100-240 VAC, 50/60 HZ

Power Consumption (typical)

• P8P05 / P8C05 / P8Z05 / P8E05 320 watts
• P8P10 / P8C10 / P8Z10 / P8E10 320 watts
• P8C15 475 watts
• P8C20 475 watts

Power Consumption (Standby)

• 5 watts

Operating Temperature

• Environmental Operating Temperature 50° to 104° F, 10° to 40° C

Paper Type

• Continuous, fan folded, edge-perforation

Print Width

• 13.6″ (345mm)

Media Copies

• Up to 6 part

Media LENGTH

• 3” (76mm) to 12” (305mm)

Media THICKNESS MULTI-PART

• 0.025” (0.64mm) max

Media Width

• 3″ (76mm) to 17″ (432mm)
• For Zero Tear models:
  • 7.5” (191mm) to 12” (305mm) for up to 4 part carbon and 6 part carbonless
  • 7.5” (191mm) to 16” (406mm) for up to 3 part carbon and 4 part carbonless

Media Weight Single Ply

• 15 lb. Bond to 100 lb. Tag (56 to 163 gm/M2)
• For Zero Tear models:
  • 18 lb. Bond to 100 lb. Tag (67.7 to 163 gm/M2) for forms up to 12” (305mm) in width
  • 20 lb. Bond to 100 lb. Tag (75.2 to 163gm/M2) for forms up to 16” (406mm) in width

MTBF

• 10,000 hours at 25% duty cycle and 25% page density

Consumable/Ribbons

• Standard Life Cartridge Ribbon: 17,000 pages
• Extended Life Cartridge Ribbon: 30,000 pages

Page yield based on ISO LSA Page, 8.5″ x 11″ letter-size, approximately 5% coverage

Height:

• 35.9” (911.8 mm) with basket
• 35.9” (911.8 mm) without basket

Width:

• 25.8″ (655.3 mm) with basket
• 25.8″ (655.3 mm) without basket

Depth:

• 35.6″ (904.2 mm) with basket
• 25.6″ (650.2 mm) without basket

Printer Weight:

• 150 lbs (68 Kg) with basket
• 150 lbs (68 Kg) without basket

Shipping Printer Weight:

• 190 lbs (86.1 Kg) with basket
• 190 lbs (86.1 Kg) without basket

Acoustic Noise (dBA) per ISO 7779:

• P8E05: 58dBA
• P8E10: 60dBA
