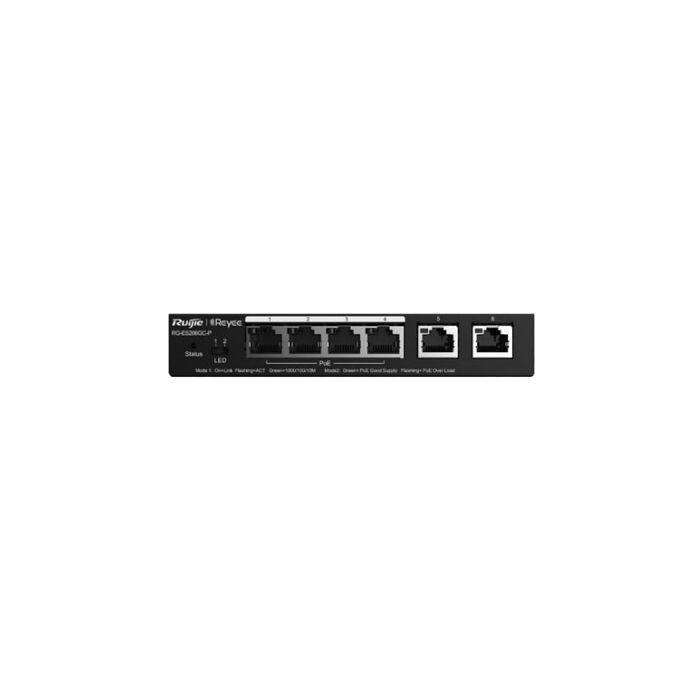

Ruijie Gigabit Smart Switch ES206GC-P
Switching capacity 12Gbps
Switching Cache 1Mbit
Packet forwarding rate 8.9Mpps
Ports 4 x 10/100/1000(PoE/PoE+) Base-T. 2 x 10/100/1000 uplink Base-T
PoE Standard IEEE 802.3at / 802.af
PoE Power Budget 54W
Speed/Duplex mode Auto / Half / Full duplex Speed auto / 10/ 100 /1000
MAC Address 4K
Max. VLAN 16
Allowed VLAN ID 1 - 4094
Port-based VLAN Yes
Flow Control Yes
Loop Protection Yes
Unknown Unicast Supression Yes
Multicast/Broadcast Storm Suppresion Yes
Mirroring Many-to-One
Port Isolation Yes
Cable Testing Yes
ICMP Ping Yes
DNS DNS Client
Telnet Yes
MACC Yes
Port Surge Common mode: 4KV
Electrostatic Discharge Air discharge: 6KV. Contact discharge: 4KV
Power Consumption ≤ 60W
Power supply External power adapter 100-240V
Dimension 148 x 78 x 26mm
Weight 0.9kg with package
MTBF >200K
Temperature Operating: 0 to 40°C. Storage: -40 to 70ºC
Humidity Operating: 10% to 90% RH. Storage: 5% to 95% RH
Operating Altitude -500 ~ 5000 meters
Fan Fanless
Management Support management and configuration through web management interface, MACC cloud platform and mobile app
Safety Standard Ground Resistance GB4943-2011, EN 62638-1
EMC GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
Merk | Ruijie |
---|
