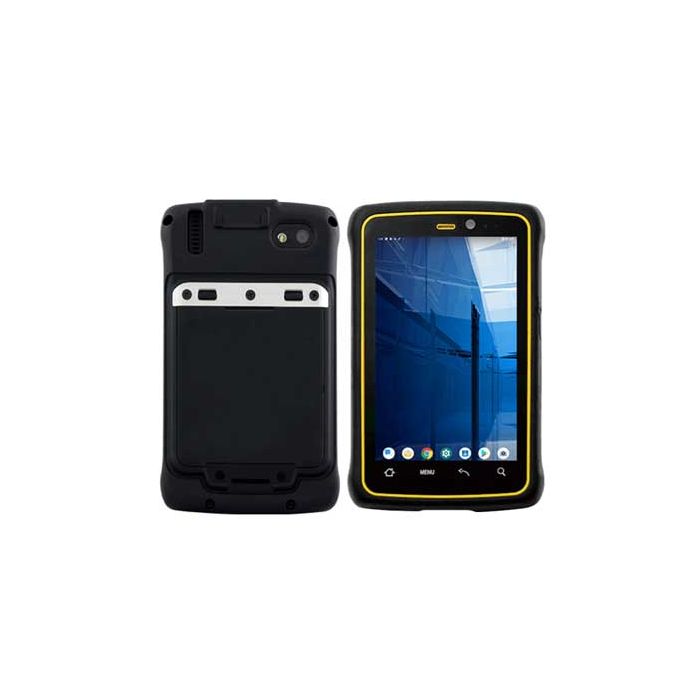

Winmate Rugged Handheld PDA E430RQ8
Display
Size 4.3 inches
Resolution 800x480
Type Projected Capacitive Multi Touch
Panel Brightness 400 nits
Contrast Ratio 800:1
View Angles 80,80,80,80
System Specification
Processor Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
Memory 3GB
Storage 32GB
Operating System Android 9.0
WLAN Support
BT Support
RFID NFC (Read / Write, Peer to Peer mode) (Optional)
Sensors Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors
Camera
Front Camera 8MP Camera
Rear Camera 13MP Camera with LED Auxiliary Light (Auto Focus)
Mechanical
Dimension 132.57 x 81.87 x 27.4 mm
Weight 260g
IO Ports
USB Port 1 x USB 3.0 Type C OTG
(support charging)
Audio
1 x Built-in Mic
1 x Speaker
SD Card Slot 1 x Micro SD Card Slot
Indicator 1 x LED Indicators (Power, Battery)
Docking Connector 1 x Docking Connector
Environment
Operating Humidity 5% to 95% RH, Non-Condensing
Operating Temperature -10°C to 50°C (Battery mode)
Storage Temperature -30°C to 70°C
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
Drop MIL-STD-810G Method 516.6, 5 ft
IP rating IP65
Certification CE, FCC
Control Button 1 x Volume +/- , 1 x Power Button, 1 x Function Button, 4 Capacitive Button (1 x Home, 1 x Menu, 1 x Esc, 1 x Search)
Battery 3.7V 3900mAh
Battery Operating Time 20Hr
Power Rating 5V
Adapter 5V 1A Adapter with USB TypeC
Security Function
SOTI MobiControl
SOTI MobiControl Compliance
Accessory
Universal Adapter
USB Type-C Cable
Battery
Hand Strap
Optional Accessory
Charging Dock 2 bay
Charging Dock 6 bay
Battery Charging Dock 2 bay
Battery Charging Dock 6 bay
Vehicle Charging Dock
Battery
Leather Holster
Lanyard
Micro SD Card
Barcode Scanner 1D/2D Barcode Reader (Optional)
Style | Bisnis |
---|---|
Prosesor | Qualcomm |
RAM | 3GB |
Storage | 32GB |
Display | Touchscreen, 4.1 - 5 inch |
Display Type | Capacitive Touchscreen LCD |
OS | Android 9 |
Garansi | 1 Tahun |
